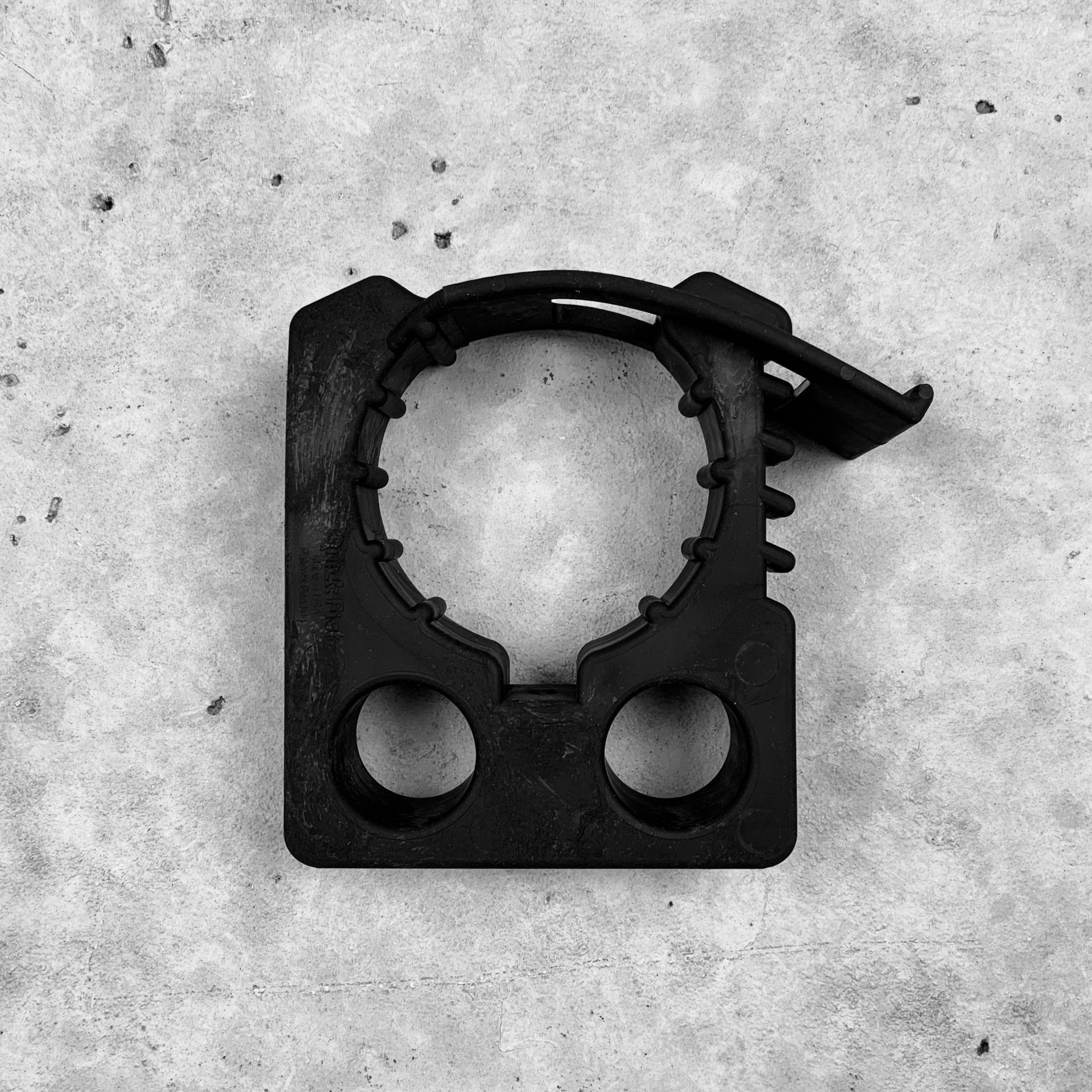

Fire Extinguisher Mount For Molle Panels
• Holds objects from 2 3/4″ to 3 1/4″ (70mm to 83mm) in diameter.
• Each clamp supports a safe working load of 50lbs (23 Kilos).
• Mounts easily with one 1/4″ (6mm) bolt or screw.
• Mounting area: 4 1/2” x 1 1/4” (113mm x 32mm).
3″ (NOZZLE) QUICK FIST INSTALLATION INSTRUCTIONS
1. The two protrusions on the base will keep the clamp from turning while in use. Using the template below, drill 3 X 1/4″ (6mm) holes. The outer two holes need be about 1/8″ (3mm) deep. Use a 1/4″ bolt or screw and a washer to mount the QUICK FIST clamp.
2. The QUICK FIST can be mounted with the strap facing in any direction.
3. To clamp: Put the Nozzle between the jaws and push the strap to reach the desired tightness.
